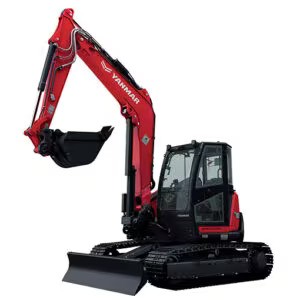

Yanmar
SV100-2
76Horse Power (PS)
10,200Weight (kg)
- 10-ton Premium class
- Sound-insulated, vibration-damped cabin
- Built for years of heavy work
Price
2,900,000 THB
Installment plans · Zero down · Special promos — free consultation
Technical Specifications
Detailed specs for SV100-2
- Engine
- Yanmar 4TNV98CT-VBV, 4-cylinder water-cooled diesel
- Emission Standard
- Tier 4 / Stage IIIB
- Displacement
- 3.318 L
- Net Power
- 51.7 kW (70.3 HP) @ 2100 rpm
- Gross Power
- 53.7 kW (73 HP) @ 2100 rpm
- Travel Speed
- 2.5 / 4.4
- Swing Speed
- 9.1 rpm
- Hydraulic Pressure
- 245 bar
- Bucket Capacity
- 0.3 m³
- Max Digging Depth
- 4,570 mm
- Max Digging Reach
- 7,060 mm
- Max Digging Height
- 7,260 mm
- Max Dumping Height
- 5,140 mm
- Front Swing Radius
- 2,480 mm
- Rear Swing Radius
- 1,330 mm
- Ground Pressure
- 0.381 kg/cm²
- Track Width
- 485 mm
- Operating Weight
- 9,625 kg
- Transport Length
- 6,390 mm
- Transport Width
- 2,320 mm
- Transport Height
- 2,810 mm
- Fuel Tank Capacity
- 115 L
* Specifications may change without prior notice. Please confirm with the sales team before deciding.
